Plate 83: No. 29 Old Burlington Street, west elevation, ground- and first-floor plans

Survey of London: Volumes 31 and 32, St James Westminster, Part 2. Originally published by London County Council, London, 1963.

This free content was digitised by double rekeying and sponsored by English Heritage. All rights reserved.

Citation:

In this section

No. 29 Old Burlington Street, 1723: engravings in Vitruvius Britannicus, vol. III, 1725.

Earl of Burlington, architect (p. 500). Demolished

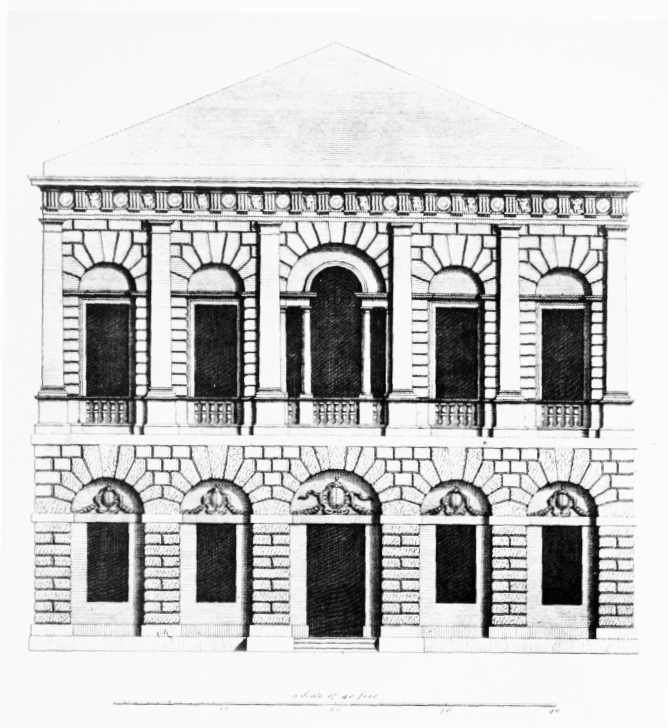

a. West elevation

Figure 83a:

No. 29 Old Burlington Street, west elevation, ground- and first-floor plans.

West elevation

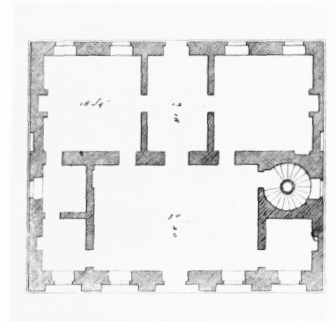

b. Ground-floor plan

Figure 83b:

No. 29 Old Burlington Street, west elevation, ground- and first-floor plans.

Ground-floor plan

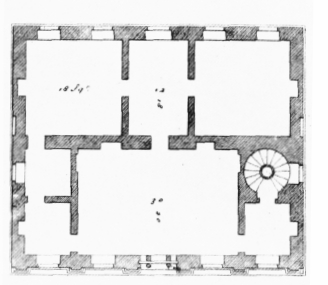

c. First-floor plan

Figure 83c:

No. 29 Old Burlington Street, west elevation, ground- and first-floor plans.

First-floor plan
